Category: SKU: ECR18 Electric

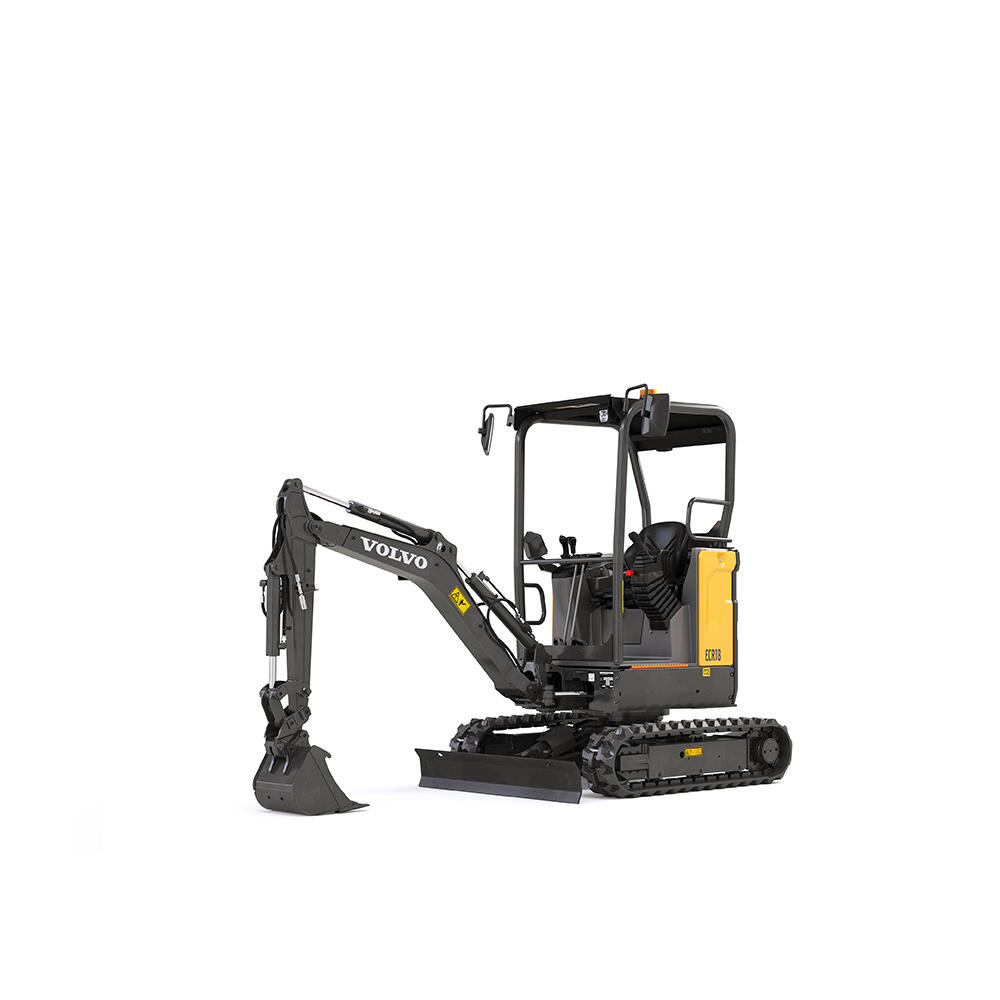

ECR18 Electric

  • 1,790 - 1,870 kgOperating weight
  • 2,528 - 2,727 mmMaximum digging depth (short/long arm)

Operating weight1,790 - 1,870 kg
Maximum digging depth (short/long arm)2,528 - 2,727 mm
Maximum dump height (short/long arm)2,444 - 2,588 mm
Travel speed, low / high1.8 / 3.5 km/h
Breakout force12.9 kN
Tear out force (arm breakout force) (short/long arm)7.95 - 6.95 kN
Overall width995 - 1,352 mm
Overall length (short/long arm)3,431 - 3,309 mm
Main hydraulic pump max. flow34 l/min
Electric motor (peak)18 kW
Battery voltage48 V
Battery capacity16 kWh
Indicative runtime (depending on application)Up to 5 hours
On board charging time 230 VAC 16A~ 5 h
Off board charging time 400 VAC 32A~ 1 h
